with one connection and microstructured backtaper.

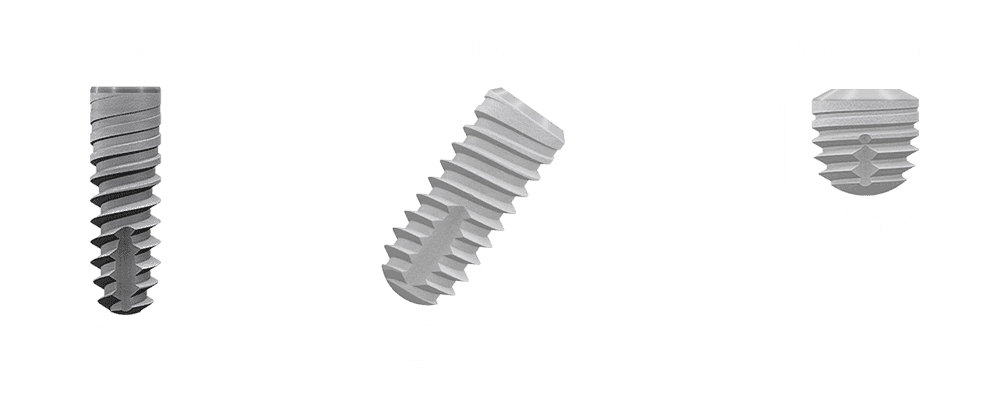

Slim.
Angled.
Ultra short.
copaSKY 3.0
Limited space, more options.
- Rest assured, you will soon be able to close even the smallest gap.
- Inserted using the established surgical procedure
- Platform-switch with microstructured backtaper
- Conical-parallel copaSKY implant-abutment connection
- Self-cutting double thread
- Compression thread
- Prosthetic restoration with the existing product portfolio
- Existing tray plus upgrade kit with three additional drills
In the future, you will be able to treat narrow gaps (≤6 mm) with copaSKY 3.0 and immediately if the primary stability is sufficient.
- Same implant-abutment connection
- Same shape & design
- Same surfaces
copaSKY 3.0
APPLICATION
Slim implant for immediate & late restoration
MATERIAL
Titanium Grade 4 KV with 810 - 860 MPa mechanical stability and at least 15% elongation
HIGH PRIMARY STABILITY
For any bone situation
IMPLANT POSITION
Equicrestal & Subcrestal
LENGTH
8 mm | 10 mm | 12 mm | 14 mm
Surface design
The osseo connect surface (ocs)®
The structure of the connective tissue consists of horizontal fibres, which attach themselves to the natural tooth and thereby prevent the build-up of plaque. The horizontal micro-grooves on the SKY implants also support attachment of the soft tissue so that a type of soft tissue cuff is created to protect the implant.
1. Mashined surface
Horizontal micro-grooves support attachment of the connective tissue.
2. Etched surface
Etched transition structure provides the bones and soft tissue possibilities for adaptation.
3. Blasted & etched surface
Blasted etched surface for the attachment of osteoblasts for rapid osseointegration.
Implant-abutment connection
Conical-parallel copaSKY connection
- One connection geometry for all diameters – reduction in the prosthetics range, simplified stockkeeping and improved process reliability.
- Stable and reversible conicalparallel implant-abutment connection for easy prosthetics removal
Torx
- The gold standard for high torque insertion.
- No damage to the implant and no risk of insertion instruments getting stuck.
Indication
One connection for
- Slim.
- Angled.
- Ultra short.
Due to its slim design, the copaSKY 3.0 is approved for the following indications*.
Single tooth restoration
- Upper jaw: 12, 22
- Lower jaw: 32, 31, 41, 42
- For all gaps up to 6 mm maximum
Edentulous space
- Mesial: copaSKY 3.0
- Distal: copaSKY ≥ 3.5
Full-Arch restoration
- Front: copaSKY 3.0
- Posterior: copaSKY ≥ 3.5
Prosthesis fixation on 4 implants
- Front: copaSKY 3.0
- Posterior: copaSKY ≥ 3.5
